Upgrade Guide
#
Upgrading from 1.x.x to 2.0.0: Key Changes and ConsiderationsThis document outlines the major updates, configuration compatibility changes, API behavior differences, and critical considerations when upgrading the APISIX Ingress Controller from version 1.x.x to 2.0.0. Please read carefully and assess the impact on your existing system before proceeding with the upgrade.
#
APISIX Version Dependency (Data Plane)The apisix-standalone
mode is supported only with APISIX 3.13.0. When using this mode, it is mandatory to upgrade the data plane APISIX instance along with the Ingress Controller.
#
Architecture Changes#
Architecture in 1.x.xThere were two main deployment architectures in 1.x.x:
Mode | Description | Issue |
---|---|---|
Admin API Mode | Runs a separate etcd instance, with APISIX Admin API managing data plane configuration | Complex to deploy; high maintenance overhead for etcd |
Mock-ETCD Mode | APISIX and the Ingress Controller are deployed in the same Pod, mocking etcd endpoints | Stateless Ingress cannot persist revision info; may lead to data inconsistency |
#

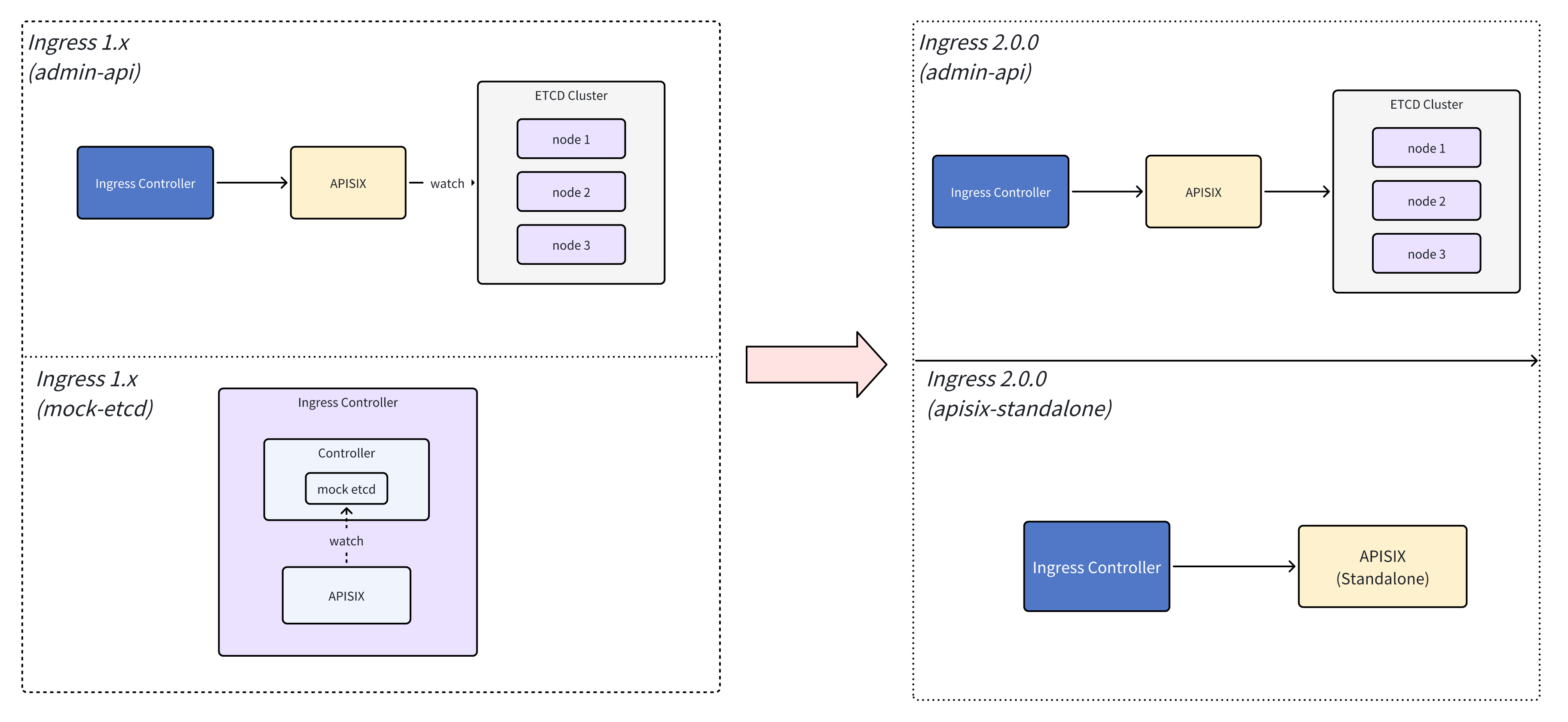

Architecture in 2.0.0#
Mock-ETCD Mode DeprecatedThe mock-etcd architecture is no longer supported. This mode introduced significant reliability issues: stateless ingress controllers could not persist revision metadata, leading to memory pollution in the data plane and data inconsistencies.
The following configuration block has been removed:
etcdserver:
enabled: false
listen_address: ":12379"
prefix: /apisix
ssl_key_encrypt_salt: edd1c9f0985e76a2
#
Controller-Only Configuration SourceStarting with APISIX Ingress Controller 2.0.0, the controller is the single source of truth. Manual Admin API changes will be overwritten on the next full sync. The prior approach, which allowed controller-managed and manually added configurations to coexist, was incorrect and is now deprecated.
#
APISIX With Etcd (Admin API) synchronization performanceIn APISIX Ingress Controller 2.0.0, ADC performs scheduled resource synchronization by comparing resources against the admin API response.
Because the Admin API fills in default values, the submitted content may differ from the returned result. This breaks the diff, triggering full updates to data plane resources, causing cache invalidation and significant performance impact.
#
Ingress Configuration Changes#
Configuration Path ChangesOld Path | New Path |
---|---|
kubernetes.election_id | leader_election_id |
#
Removed Configuration FieldsConfiguration Path | Description |
---|---|
kubernetes.* | Multi-namespace control / sync interval |
plugin_metadata_cm | Plugin metadata ConfigMap |
log_rotation_* | Log rotation settings |
apisix.* | Static Admin API configuration |
etcdserver.* | Configuration for mock-etcd (deprecated) |
#
Example: Legacy Configuration Removed in 2.0.0apisix:
admin_api_version: v3
default_cluster_base_url: "http://127.0.0.1:9180/apisix/admin"
default_cluster_admin_key: ""
default_cluster_name: "default"
GatewayProxy
CRD#
New Configuration via From version 2.0.0, the data plane must be connected via the GatewayProxy
CRD:
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
name: apisix
spec:
controller: "apisix.apache.org/apisix-ingress-controller"
parameters:
apiGroup: "apisix.apache.org"
kind: "GatewayProxy"
name: "apisix-proxy-config"
namespace: "default"
scope: "Namespace"
---
apiVersion: apisix.apache.org/v1alpha1
kind: GatewayProxy
metadata:
name: apisix-proxy-config
namespace: default
spec:
provider:
type: ControlPlane
controlPlane:
endpoints:
- https://127.0.0.1:9180
auth:
type: AdminKey
adminKey:
value: ""
#
API ChangesApisixUpstream
#
Due to current limitations in the ADC component, the following fields are not yet supported:
spec.discovery
: Service Discoveryspec.healthCheck
: Health Checking
More details: ADC Backend Differences
ApisixClusterConfig
#
The ApisixClusterConfig
CRD has been removed in 2.0.0. global rules and configurations should now be managed through the ApisixGlobalRule
CRDs.
#
Ingress#
API Version SupportCurrently supports networking.k8s.io/v1 only. Support for other Ingress API versions (networking.k8s.io/v1beta1 and extensions/v1beta1) is not yet available in 2.0.0.
#
Limited Support for Ingress AnnotationsIngress annotations used in version 1.x.x are not fully supported in 2.0.0. If your existing setup relies on any of the following annotations, validate compatibility or consider delaying the upgrade.
Ingress Annotations |
---|
k8s.apisix.apache.org/use-regex |
k8s.apisix.apache.org/enable-websocket |
k8s.apisix.apache.org/plugin-config-name |
k8s.apisix.apache.org/upstream-scheme |
k8s.apisix.apache.org/upstream-retries |
k8s.apisix.apache.org/upstream-connect-timeout |
k8s.apisix.apache.org/upstream-read-timeout |
k8s.apisix.apache.org/upstream-send-timeout |
k8s.apisix.apache.org/enable-cors |
k8s.apisix.apache.org/cors-allow-origin |
k8s.apisix.apache.org/cors-allow-headers |
k8s.apisix.apache.org/cors-allow-methods |
k8s.apisix.apache.org/enable-csrf |
k8s.apisix.apache.org/csrf-key |
k8s.apisix.apache.org/http-to-https |
k8s.apisix.apache.org/http-redirect |
k8s.apisix.apache.org/http-redirect-code |
k8s.apisix.apache.org/rewrite-target |
k8s.apisix.apache.org/rewrite-target-regex |
k8s.apisix.apache.org/rewrite-target-regex-template |
k8s.apisix.apache.org/enable-response-rewrite |
k8s.apisix.apache.org/response-rewrite-status-code |
k8s.apisix.apache.org/response-rewrite-body |
k8s.apisix.apache.org/response-rewrite-body-base64 |
k8s.apisix.apache.org/response-rewrite-add-header |
k8s.apisix.apache.org/response-rewrite-set-header |
k8s.apisix.apache.org/response-rewrite-remove-header |
k8s.apisix.apache.org/auth-uri |
k8s.apisix.apache.org/auth-ssl-verify |
k8s.apisix.apache.org/auth-request-headers |
k8s.apisix.apache.org/auth-upstream-headers |
k8s.apisix.apache.org/auth-client-headers |
k8s.apisix.apache.org/allowlist-source-range |
k8s.apisix.apache.org/blocklist-source-range |
k8s.apisix.apache.org/http-allow-methods |
k8s.apisix.apache.org/http-block-methods |
k8s.apisix.apache.org/auth-type |
k8s.apisix.apache.org/svc-namespace |
#
SummaryCategory | Description |
---|---|
Architecture | The mock-etcd component has been removed. Configuration is now centralized through the Controller. |
Configuration | Static configuration fields have been removed. Use GatewayProxy CRD to configure the data plane. |
Data Plane | The Admin API configuration method is still supported. Support for the Standalone API-driven mode was introduced in APISIX 3.13.0 and later. |
API | Some fields in Ingress Annotations and ApisixUpstream are not yet supported. |
Upgrade Strategy | Blue-green deployment or canary release is recommended before full switchover. |
